Intelligent Architectural Objects

Architectural components created by CADSTA Arch are intelligent objects that interact with each other to mimic real-world behavior and construction. They automatically update as the design changes. For example, all intersections of connected walls are automatically cleaned up when drawing or editing. When objects such as doors, windows, or columns are inserted into a wall, they automatically create their own openings. If any objects are moved or deleted, openings and finishes will automatically mend or self-heal. These intelligent objects allow for easy extraction of property data. The report will automatically update as the design changes, and it can be exported to an external file.

​

Features and functionalities in CADSTA Arch enable efficient creating and editing of walls, doors, windows, roofs, floors and stairs, as well as elevations, sections in 2D plans and 3D models. Seperate commands are not required to manipulate these intelligent building components. Instead, standard CAD commands such as Fillet, Trim, Extend, Offset, Move etc. can be applied to these intelligent objects. CADSTA Arch drawings can be viewed and edited in AutoCAD or AutoCAD LT.

​

​

Roof Module:

An efficient solution to simplify time consuming roof design and documentation including One-pick roof builder. Learn more

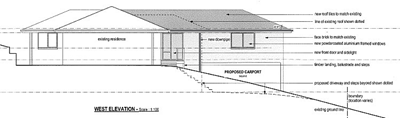

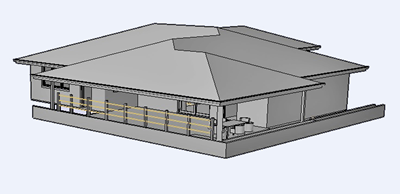

Generate 2D elevations, sections, and 3D perspectives directly from floor plans. Learn more
