CADSTA Joist Module

CADSTA Joist Module provides powerful tools to generate, categorise and label joists. It also automatically generate a schedule of joist quantity information including label, size, quantity and treatment. The joist objects and schedule of joist quantity are fully configurable.

Joist generated by CADSTA Arch are  intelligent objects. They are fully monitored by the CADSTA Joist Module system. If any attributes of the joist object has been modified, or any joist object has been added or deleted, the system will automatically re-categorise and re-label joists in the drawing. The joist quantity information will also be updated automatically.

The schedule of joist quantity information can be extracted and exported to external Microsoft Excel file.

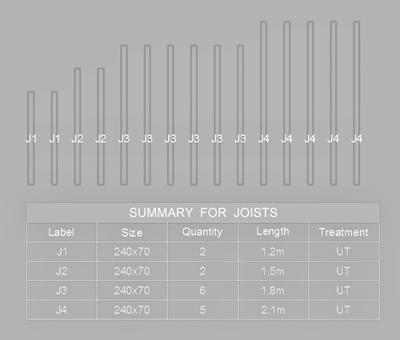

A sample of joists and joist quantity is shown below:
