CADSTA Roof Module

The Roof Module is one of the key features in this architectural software. Similar to other CADSTA Arch modules, such as walls, doors, and windows, the roof module provides a range of easy-to-use and efficient tools for roof design and documentation. It automatically generates detailed 3d roofs, roof sections including roof truss sections.

      Some of the key features are:

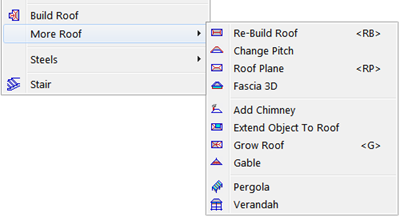

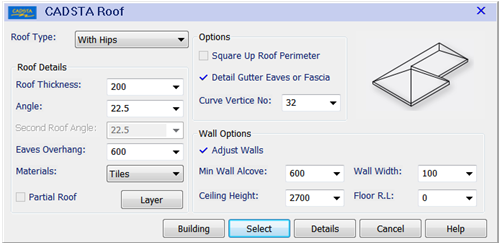

  • generate a new roof with pre-set roof type and settings
  • customize new roof types and detail settings
  • generate roofs with gutter, eaves or fascia
  • add and integrate an additional roof to an existing roof
  • add a gable or a chimney to an existing roof
  • add a pergola or a veranda to an existing roof

An efficient solution to simplify the time consuming roof design and documentation including one-pick roof builder

CADSTA Arch also includes all features in:

CADSTA Tools - load and run LISP routines in AutoCAD and AutoCAD LT

CADSTA Plus - Express Tools alike functios, 3D tools, and data extraction tools

CADSTA Elements - productivity enhancement tools and customization tools
